Finding a Close Point in a Lattice

• Reference
  1. [Bab85] On Lovász’ lattice reduction and the nearest lattice point problem
  2. [Kle00] Finding the closest lattice vector when it’s unusually close
  3. [GPV08] Trapdoors for Hard Lattices and New Cryptographic Constructions
  4. [DP16] Fast Fourier Orthogonalization
  5. [GMRR22] Power analysis attacks on falcon.

Table of Contents

Problem Setting

Lattice $\mathcal{L}(\mathbf{B})$ of some matrix $\mathbf{B} = \{\mathbf{b}_1,\cdots,\mathbf{b}_n\}$ where $\mathbf{b}_i$’s are column vectors is $$ \mathcal{L}(\mathbf{B}) = \left\{ \mathbf{B}x =\sum_{i=1}^n x_i\mathbf{b}_i : x_i \in \mathbb{Z}\right\} $$ The goal is that, given some vector $\mathbf{c}$, find vector $\mathbf{z} \in \mathcal{L}(\mathbf{B})$ which is close to $\mathbf{c}$, with the closeness be measured by Euclidean distance.

Definition

The Gram-Schmidt Orthogonalization (GSO) of a full-rank matrix $\mathbf{B}$ is $\mathbf{\tilde B} = \{\mathbf{\tilde b}_1 ,\cdots,\mathbf{\tilde b}_n\}$ where $$ \quad \mathbf{\tilde b}_i = \mathbf{b}_i - \sum_{j=1}^{i-1} \frac{\langle \mathbf{ b}_i,\mathbf{\tilde b}_j \rangle}{\langle \mathbf{\tilde b}_j,\mathbf{\tilde b}_j \rangle} \mathbf{\tilde b}_j $$ Note that we can write as $$ \mathbf{B} = \mathbf{\tilde BU} \quad \text{or} \quad \mathbf{B}^t = \mathbf{L\tilde B}^t $$ for some upper-triangular matrix $\mathbf{U}$ or lower-triangular matrix $\mathbf{L}$ with $1$ on their diagonals. $$ \mathbf{U} = \begin{bmatrix} 1 & \frac{\langle \mathbf{ b_2},\mathbf{\tilde b_1} \rangle}{\langle \mathbf{\tilde b_1},\mathbf{\tilde b_1} \rangle} & \frac{\langle \mathbf{ b_3},\mathbf{\tilde b_1} \rangle}{\langle \mathbf{\tilde b_1},\mathbf{\tilde b_1} \rangle} & \cdots & \frac{\langle \mathbf{ b_n},\mathbf{\tilde b_1} \rangle}{\langle \mathbf{\tilde b_1},\mathbf{\tilde b_1} \rangle} \\ 0 & 1 & \frac{\langle \mathbf{ b_3},\mathbf{\tilde b_2} \rangle}{\langle \mathbf{\tilde b_2},\mathbf{\tilde b_2} \rangle} & \cdots & \frac{\langle \mathbf{ b_n},\mathbf{\tilde b_2} \rangle}{\langle \mathbf{\tilde b_2},\mathbf{\tilde b_2} \rangle} \\ 0 & 0 & 1 & \cdots & \vdots \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & \cdots & 0 & 1 \end{bmatrix} $$ Gaussian function for $n$-dimension: $$ \rho_{s,\mathbf{c}}(\mathbf{x}) = \exp \left( -\pi \frac{ \|\mathbf{x} - \mathbf{c}\|^2}{s^2}\right) $$ We may omit $\mathbf{c}$ if $\mathbf{c} = \mathbf{0}$ . The discrete Gaussian distribution can be defined as: $$ D_{\Lambda,s,\mathbf{c}}(\mathbf{x}) = \frac{\exp \left( -\pi \frac{ \|\mathbf{x} - \mathbf{c}\|^2}{s^2}\right)}{\sum _{\mathbf{v} \in \Lambda}\exp \left( -\pi \frac{ \|\mathbf{v} - \mathbf{c}\|^2}{s^2}\right)} = \frac{\rho_{s,\mathbf{c}}(\mathbf{x})}{\rho_{s,\mathbf{c}}(\mathbf{\Lambda})} $$

Babai’s Round-off Algorithm [Bab05]

Given vector $\mathbf{c}$. Find vector $\mathbf{z} \in \mathcal{L}(\mathbf{B})$ which is close to $\mathbf{c}$.

First find $\mathbf{B}^{-1}$. Then consider $\mathbf{v} \gets \mathbf{B} \cdot \lfloor \mathbf{B^{-1} c} \rceil$.

Note that $$ \mathbf{c} - \mathbf{v} = \mathbf{B} \cdot \mathbf{B^{-1}c} -\mathbf{B} \cdot \lfloor \mathbf{B^{-1} c} \rceil \in \mathbf{B} \cdot [-1,1]^n $$

Nearest-Plane Algorithm [Kle00]

Given vector $\mathbf{c}$. Find vector $\mathbf{z} \in \mathcal{L}(\mathbf{B})$ which is close to $\mathbf{c}$.

Let $\mathbf{c}_n = \mathbf{c}$ and $\mathbf{v}_n = \mathcal{0}$ .

For $i = n,\cdots,1$:

1. $c_i’ \gets \frac{\langle \mathbf{c}_i, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle}$
2. Let $z_i \gets \lfloor c_i’ \rceil$
3. $\mathbf{c}_{i-1} \gets \mathbf{c}_i - z_i \mathbf{b}_i$ and $\mathbf{v}_{i-1} \gets \mathbf{v}_i + z_i \mathbf{b}_i$

Output $\mathbf{v}_0$.

Theorem 1

$$ \mathbf{v}_0 - \mathbf{c} = \sum_{i=1}^n (z_i - c_i')\mathbf{\tilde b}_i \in \mathbf{\tilde B} \cdot[-\frac{1}{2},\frac{1}{2}]^n $$ ### *Proof:* We claim that for $j=1,2,\cdots,n$ $$ \mathbf{v}_0 - \mathbf{v}_j - \pi_j(\mathbf{c}_j) = \sum_{i=1}^j (z_i - c_i')\mathbf{\tilde b}_i $$ where $\pi_j(\cdot)$ is the orthogonal projection onto $\text{span}(\mathbf{b}_1,\cdots,\mathbf{b}_j)$ $$ \pi_j(\mathbf{t}) = \sum_{k=1}^{j} \frac{\langle \mathbf{t},\mathbf{\tilde b}_k \rangle}{\langle \mathbf{\tilde b}_k ,\mathbf{\tilde b}_k \rangle} \mathbf{\tilde b}_k \quad \text{and} \quad \mathbf{\tilde b}_j = \mathbf{b}_{j} -\pi_{j-1}(\mathbf{b}_{j}) $$ Observe that $$ \pi_j(\mathbf{c}_j) = c_j' \mathbf{\tilde b}_j +\pi_{j-1}(\mathbf{c}_j) \quad \text{and} \quad \mathbf{\tilde b}_j = \mathbf{b}_{j} -\pi_{j-1}(\mathbf{b}_{j}) $$ Note that when $j=n$, the above equation becomes what we desire since $\mathbf{v}_n = \mathbf{0}$ and $\pi_n(\mathbf{c}_n) = \pi_n(\mathbf{c}) = \mathbf{c}$. We prove by induction. For $j=1$, $$ \mathbf{v}_0 - \mathbf{v}_1 - \pi_1(\mathbf{c}_1) = z_1\mathbf{b}_1 - \pi_1(\mathbf{c}_1) = z_1\mathbf{\tilde b}_1 - c_1'\mathbf{\tilde b}_1 $$ Now suppose the equation is true for all $j < k$. When $j=k$, $$ \begin{aligned} \mathbf{v}_0 - \mathbf{v}_j - \pi_j(\mathbf{c}_j) &= \mathbf{v}_0 - (\mathbf{v}_{k-1} - z_k \mathbf{b}_k) - \pi_{k-1}(\mathbf{c}_{k}) + c_k'\mathbf{\tilde b}_k \\ &= \mathbf{v}_0 - \mathbf{v}_{k-1} +z_k\mathbf{b}_k - \pi_{k-1}(\mathbf{c}_{k-1} + z_k\mathbf{b}_k) - c_k'\mathbf{\tilde b}_k \\ &= \mathbf{v}_0 - \mathbf{v}_{k-1} - \pi_{k-1}(\mathbf{c}_{k-1}) + z_k(\mathbf{b}_k - \pi_{k-1}(\mathbf{b}_k)) - c_k'\mathbf{\tilde b}_k \\ &= \sum_{i=1}^{k-1} (z_i - c_i')\mathbf{\tilde b}_i + z_k\mathbf{\tilde b}_k - c_k'\mathbf{\tilde b}_k \end{aligned} $$

Another Version by $\mathbf{U}$

First find $\mathbf{t} = \mathbf{B}^{-1} \mathbf{c}$ such that $\mathbf{Bt} = \mathbf{c}$.

For $i = n,\cdots,1$:

1. $t_i’ \gets t_i + \sum_{j>i} \mathbf{U}_{ij} (t_j - z_j)$
2. Let $z_i \gets \lfloor t_i’ \rceil$

Output $\mathbf{v} = \sum_{i=1}^n z_i\mathbf{b}_i$ .

Proof of Equivalence

These two are actually computing the same thing! We show that $t_i' = c_i'$. Note that $$ c_i' = \frac{\langle \mathbf{c} - \sum_{j>i} z_j \mathbf{b}_j, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} = \frac{\langle \mathbf{c}, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} - \frac{\langle \sum_{j>i} z_j \mathbf{b}_j, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} $$ Also note that $\mathbf{U}_{ij} = \frac{\langle \mathbf{ b}_j,\mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i,\mathbf{\tilde b}_i \rangle}$ . Therefore, $$ \sum_{j>i} \mathbf{U}_{ij} z_j = \sum_{j>i} z_j \frac{\langle \mathbf{b}_j, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} = \frac{\langle \sum_{j>i} z_j \mathbf{b}_j, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} $$ Now we need to show that $t_i + \sum_{j>i} \mathbf{U}_{ij}t_j = \frac{\langle \mathbf{c}, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle}$ . Since $\mathbf{\tilde B}$ is full-rank and orthogonal, $$ \mathbf{c} = \sum_{i=1}^n \frac{\langle \mathbf{c}, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} \mathbf{\tilde b}_i = \mathbf{\tilde B} \left[ \frac{\langle \mathbf{c}, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} \right]_i $$ Therefore, $$ \left[ \frac{\langle \mathbf{c}, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle} \right]_i = \mathbf{\tilde B} ^{-1}\mathbf{c} = \mathbf{\tilde B} ^{-1}\mathbf{Bt} = \mathbf{Ut} = \left[ \sum_{j=1}^n \mathbf{U}_{ij} t_j \right]_i = \left[ t_i + \sum_{j>n} \mathbf{U}_{ij} t_j \right]_i $$

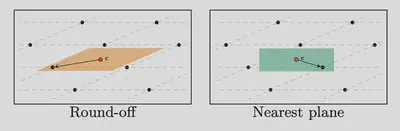

Illustration from [DP16]

Randomized Version [GPV08]

Given vector $\mathbf{c}$. Find vector $\mathbf{z} \in \mathcal{L}(\mathbf{B})$ which follows the distribution $D_{\mathcal{L}(\mathbf{B}),\sigma,\mathbf{c}}$

Let $\mathbf{c}_n = \mathbf{c}$ and $\mathbf{v}_n = \mathcal{0}$ .

For $i = n,\cdots,1$:

1. $c_i’ \gets \frac{\langle \mathbf{c}_i, \mathbf{\tilde b}_i \rangle}{\langle \mathbf{\tilde b}_i, \mathbf{\tilde b}_i \rangle}$, $\sigma_i=\frac{\sigma}{| \mathbf{\tilde b}_i |}$

2. Let $z_i \gets D_{\mathbb{Z},\sigma_i’,c_i’}$

3. $\mathbf{c}_{i-1} \gets \mathbf{c}_i - z_i \mathbf{b}_i$ and $\mathbf{v}_{i-1} \gets \mathbf{v}_i + z_i \mathbf{b}_i$

Output $\mathbf{v}_0$.

Note that Theorem 1 also holds.

Theorem 2

For $\sigma \geq \|\mathbf{B}\| \cdot \omega(\sqrt{\log(n)}) = \max_{i} \|\mathbf{b}_i\| \cdot \omega(\sqrt{\log(n)})$, $$ \mathbf{v}_0 \stackrel \Delta\sim D_{\mathcal{L}(\mathbf{B}),\sigma,\mathbf{c}} $$

Proof

Let $\mathbf{v}_0 = \sum_{i=1}^n z_i\mathbf{b}_i$ where $z_i \gets D_{\mathbb{Z},\sigma_i',c_i'}$. Then the probability of outputing $\mathbf{v}_0$ is $$ \prod_{i=1}^n D_{\mathbb{Z},\sigma_i',c_i'}(z_i) = \frac{\prod \rho_{\sigma_i',c_i'}(z_i)}{\prod \rho_{\sigma_i',c_i'}(\mathbb{Z})} $$ Note that $\rho_{\sigma_i',c_i'}(x) = \rho_{\sigma_i'}(x-c_i') = \rho_\sigma(x \cdot \|\mathbf{\tilde b}_i\|)$. The numerator is equal to $$ \begin{aligned} \prod_{i=1}^n \rho_{\sigma_i', c_i'}(z_i) = \prod_{i=1}^n \rho_{\sigma}((z_i-c_i')\cdot\|\mathbf{\tilde b}_i\|) &= \rho_{\sigma} \left (\sum_{i=1}^n (z_i-c_i')\cdot \mathbf{\tilde b}_i\right)\\ &=\rho_\sigma(\mathbf{v}_0 - \mathbf{c}) \\ &= \rho_{\sigma,\mathbf{c}}(\mathbf{v}_0) \end{aligned} $$

Now we need to prove that the denominator is close to $\rho_{\sigma,\mathbf{c}}(\mathcal{L}(\mathbf{B}))$. Recall the lemma from smoothing parameter, since $\sigma_i \geq \omega(\sqrt{\log(n)})$, $\sigma_i \geq \eta_\epsilon(\mathbb{Z})$ for negligible $\epsilon$ and

$$ \rho_{\sigma_i',c_i'}(\mathbb{Z}) \in \left[ \frac{1-\epsilon}{1+\epsilon},1 \right]\cdot \rho_{\sigma_i'}(\mathbb{Z}) $$ Therefore, $$ \prod \rho_{\sigma_i',c_i'}(\mathbb{Z}) \in \left[\left(\frac{1-\epsilon}{1+\epsilon} \right)^n, 1 \right] \cdot \prod \rho_{\sigma_i'}(\mathbb{Z}) $$ Notice that the range is now independent of $c_i'$ or $\mathbf{c}$. In particular, this shows the probability of outputting $\mathbf{v}_0$ is equal to $$ \Pr[\mathbf{v}_0]=\frac{\rho_{\sigma,\mathbf{c}}(\mathbf{v}_0)}{\prod \rho_{\sigma_i',c_i'}(\mathbb{Z})} \in \rho_{\sigma,\mathbf{c}}(\mathbf{v}_0) \cdot \left[1,\left(\frac{1+\epsilon}{1-\epsilon} \right)^n\right] \cdot \frac{1}{\prod \rho_{\sigma_i'}(\mathbb{Z})} $$ Since summing over all possible $\mathbf{v}_0$ is $1$, we know that $$ \prod \rho_{\sigma_i'}(\mathbb{Z}) \in \left[1,\left(\frac{1+\epsilon}{1-\epsilon} \right)^n\right] \cdot \rho_{\sigma,\mathbf{c}}(\mathcal{L}(\mathbf{B})) $$ Now the probability of outputting $\mathbf{v}_0$ is within $\left[\left(\frac{1-\epsilon}{1+\epsilon} \right)^n,\left(\frac{1+\epsilon}{1-\epsilon} \right)^n\right]$ of $D_{\mathcal{L}(\mathbf{B}),\sigma,\mathbf{c}}(\mathbf{v}_0)$. For negligible $\epsilon$, $\left(\frac{1+\epsilon}{1-\epsilon} \right)^n$ is also negligible, and we can show that the statistical distance is negligible.

Remark: This also implies that by calling this algorithm multiple times, one can get the “closest” point with high probability.
